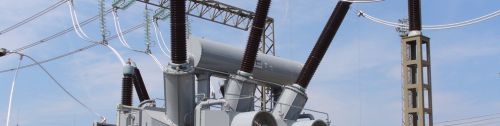

Transformer Condition Monitoring

Transformers are the most cost-intensive single component asset in power transmission and distribution and should therefore be supervised with special care. Analysis of the gases dissolved in transformer oil is recognised as the most useful tool for early detection and diagnosis of incipient faults in transformers.



HYDROCAL 1011genXP

The HYDROCAL 1011 genX P is a portable device for the analysis of dissolved and free gases from the isolation fluid of oil-filled power transformers and other electrical equipment. It individually measures moisture in oil (H2O) and the key gases hydrogen (H2), carbon monoxide (CO), carbon dioxide (CO2), methane (CH4), acetylene (C2H2), ethylene (C2H4), ethane (C2H6), oxygen (O2), nitrogen (N2) and propane (C3H8) dissolved in transformer oil.

More information on the HYDROCAL 1011genXP (PDF, 1 MB)



HYDROCAL 1001+

The HYDROCAL 1001+ is a permanently-installed composite gas-in-oil sensor for the analysis of six dissolved key fault gases such as Hydrogen (H2), Carbon Monoxide (CO), Methane (CH4), Acethylene (C2H2), Ethylene (C2H4), and Ethane (C2H6). To detect an even wider range of potential transformer faults, the HYDROCAL 1001+ also analyses the content of Moisture (H2O) in the transformer oil.

More information on the HYDROCAL 1001+ (PDF, 240 kB)



HYDROCAL 1003

The HYDROCAL 1003 is an online monitoring system permanently mounted on the transformer. It measures continuously Moisture in Oil (H2O) and the most important faults gases Hydrogen (H2) and Carbon Monoxide (CO)

More information on the HYDROCAL 1003 (PDF, 798 kB)
More information on the HYDROCAL 1003 Offshore version (PDF, 695 kB)



HYDROCAL 1004genX

The HYDROCAL 1004 genX is a truely manintenance fee online monitoring system combining proven near infrared (NIR) measuring technology with vacuum protected membrane extraction.er. It measures continuously Moisture in Oil (H2O) and the most important faults gases Hydrogen (H2) and Carbon Monoxide (CO) and Acetylene (C2H2).

More information on the HYDROCAL 1004genX (PDF, 798 kB)



HYDROCAL 1005

The HYDROCAL 1005 is a permanently-installed multi-gas-in-oil analysis system with transformer monitoring functions. It allows for the individual measurement of Moisture in Oil (H2O) and the key gases Hydrogen (H2), Carbon Monoxide (CO), Acetylene (C2H2) and Ethylene (C2H4) dissolved in transformer oil

More information on the HYDROCAL 1005 (PDF, 1.8 MB)
More information on the HYDROCAL 1005 Offshore version (PDF, 975 kB)



HYDROCAL 1008

The HYDROCAL 1008 is a permanently-installed multi-gas-in-oil analysis system with transformer monitoring functions. It allows for the individual measurement of Moisture in Oil (H2O) and the key gases Hydrogen (H2), Carbon Monoxide (CO), Carbon Dioxide (CO2), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4) and Ethane (C2H6) dissolved in transformer oil

More information on the HYDROCAL 1008 (PDF, 1.2 MB)
More information on the HYDROCAL 1008 Offshore version (PDF, 1 MB)
